High Resolution outdoor LED display screen Full Color / electronic LED business signs
Product Description:
Lightweight: The aluminum die-casting technology makes the single cabinet as light as 15KG.
Wide viewing angle: The specially designed masks can make the horizontal viewing angle up to 150 degrees.
Seamless connection: The aluminum die-casting technology, together with white the high-precision CNC procession, makes the precision reach±0.05mm so as to achieve seamless assembly.
Low power consumption: Combined with the brightness auto-adjusting technology and PFC power supply, Low current can save energy over 35%, which in other words is to save money.
Easy to maintain: No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.
Noiseless: The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
Ghost canceling: Exquisite and clear picture quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.
Technical Specifications:
| P4.8 Waterproof Outdoor LED Display |
| Module | Pitch/mm | P4.81 |
| | Module size/mm | 250x250 |
| | Density of pixel/(dots/m2) | 40432 |
| | Led encapsulation | SMD2727/SMD2525 with glue |
| | Resolution of module | 52X52 |
| Main | Optimum viewing distance | 4-25m |
| | View angle / ° | 140 H,120 V |
| | Max power consumption/W/M2 | 400 |
| | Size of cabinet/mm | 500X1000 |
| | Resolution of cabinet | 104x208 |
| | Weight of cabinet/kg | 9.5 |
| | Driving method | 1/13 scan constant current |
| | Refresh rate Hz/S | ≥2000 |
| | Luminance of white balance | ≥6500 nits |
| | Waterproof rate | IP54(front)/ IP43(back) |
| | Working voltage | 110-220 VAC/+/- 10% |
| | Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| | Control system | NovaStar (sending card, receiving cards and Hubs) |
| | Life span | >100,000h |

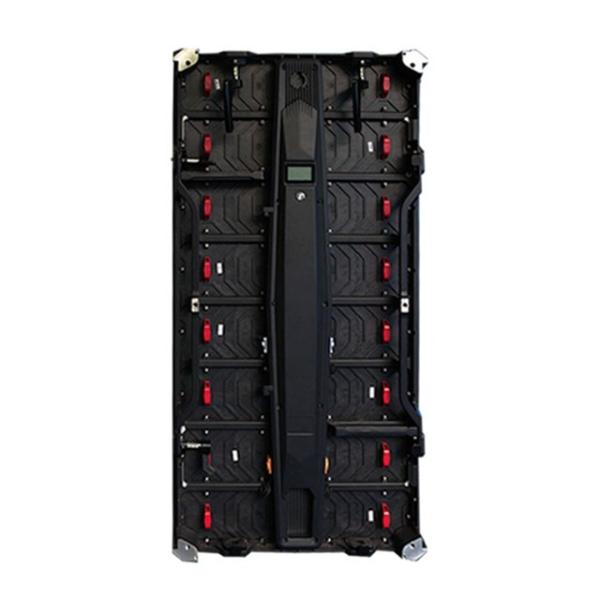

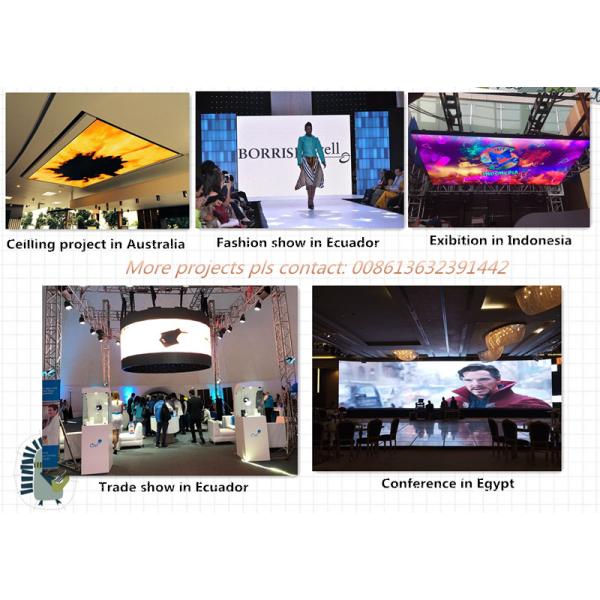

Detail Product Pictures:
FAQ:
Q1: What's the pixel pitch for Indoor LED Display Screen?
A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)
Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling systems, like Linsn, etc.
Q5: How about the size of the project?
A5: Please offer the size with "width by height" of the project. We wil offer a suitable solution for your project size. I will appreciate it if any drawing files about the installation offered.
